MPCB Digital Display Board Manufacturers in India
Two8 Digital is a Premier high-speed MPCB Digital Display Board Manufacturers, Suppliers and Dealers in India. offer top quality MPCB/CPCB LED display boards for environmental pollution parameters, that is intended to be used to provide precise real-time data about the motor operations. It was constructed on sophisticated digital technology, which allows it to operate with Motor Protection Circuit Breakers to show the essential electrical parameters, including current, voltage, power, and fault status. It is a combination of new electronic circuitry and the ability of a user-friendly display to make the industrial work easier and guarantee maximum safety standards.
Types of MPCB Digital Display Board/ MPCB Led Display
Being as leading MPCB Digital display board manufacturers in India, we provided different types according different materials which are given below.
LED displays:
- Single-color: LED Display Board Displays, which indicate information in one color, red or green.
- Multicolor: MPCB digital display board Display that is capable of presenting information in different colors giving it more flexibility in its data presentation.
- Pixel Pitch: This is the distance between pixels, which determines the resolution of a display and is commonly a parameter (e.g. P10mm, P6mm). The finer the pixel pitch the higher the resolution and thus the finer detail, particularly when close-up is involved.
Indoor vs. Outdoor:

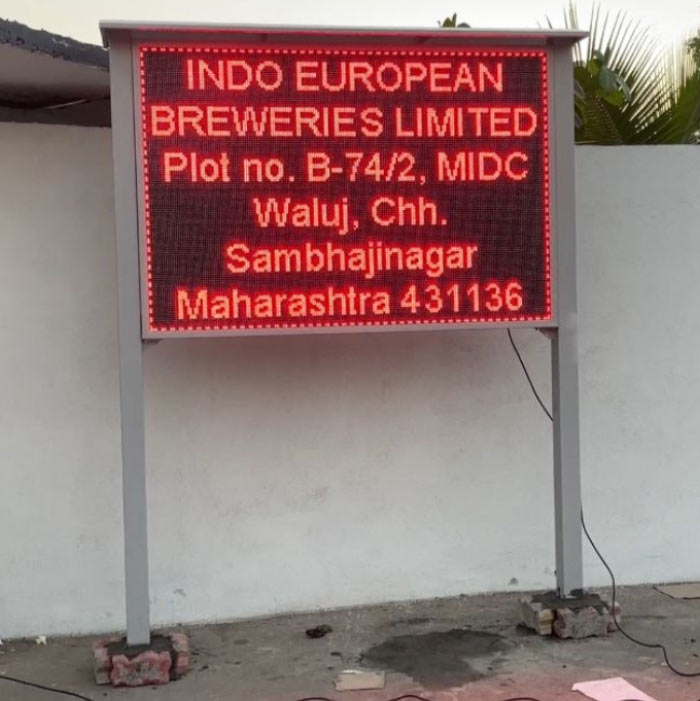

- Outdoor LED Displays: Outdoor Advertising LED display screen Designed to survive the environment such as sunlight, rain and dust, and tend to be brighter and weatherproof (e.g. IP 65 rated).
- Indoor LED Displays: MPCB Led board is used indoors inside the factory or buildings.
Graphic vs. Text:
- Text/Numerical Displays: Numeric Display Attention centered on text or numerical presentation of certain environmental parameters or message.
- Graphic/Video Displays: Display Board at factory gate is able to show images, animations and video content, which can be high-resolution.
Technical specifications of MPCB Digital Display board
We've added below a specialized table of MPCB Digital Display board Manufacturers in India that provides further technical specification information
| Parameter | Specification |
|---|---|
| Input Voltage Range | 230V AC / 415V AC ±10% |
| Frequency | 50 / 60 Hz |
| Current Range | 0.5A to 63A (Customizable up to 100A or higher) |
| Display Type | 7-Segment LED / LCD Digital Display |
| Display Parameters | Current (A), Voltage (V), Power (kW), Load %, Fault Indication |
| Protection Features | Overload, Short Circuit, Phase Loss, Phase Reversal, Under/Over Voltage |
| Trip Class | Class 10 / Class 20 (As per requirement) |
| Mounting Type | Panel Mount / DIN Rail Mount |
| Communication Interface (Optional) | RS-485 / Modbus for remote monitoring |
| Operating Temperature | -10°C to +55°C |
| Humidity | Up to 95% RH (Non-condensing) |
| Enclosure Material | High-grade ABS / MS Powder Coated Body |
| IP Protection Class | IP20 / IP42 / IP54 (as per model) |
| Accuracy | ±1% for Voltage & Current Readings |
| Indications | Digital Display with LED status and fault indicators |
| Power Consumption | < 5W |
| Compliance Standards | IEC 60947-2 / IEC 60947-4-1 |
Benefits of MPCB Digital Display Board
We as MPCB Digital Display Board suppliers in India, different benefits are there which are given below.
- Real-Time Monitoring: MPCB Digital Display Board manufacturers in India Shows real time values like current, voltage, power used and load status so that operators can make wise decisions without much time.
- Enhanced Motor Protection: Moving LED Display Board Gives correct fault detection of overloads, short circuits and phase loss, thereby providing reliable motor protection and long circuit life equipment.
- Quick Fault Identification: Digital indicators and fault codes enable the users to recognize and fix faults in real-time, thereby reducing downtimes and maintenance expenses.
- Energy Efficiency: Electronic Display Board Facilitates improved monitoring of the energy consumption, which in turn will assist industries to maximize the use of energy and to minimize the wastage of energy that is not needed.
- User-Friendly Interface: MPCB Led Display is easy to read and accessible even during low-light or hard-industrial settings, due to its obvious digital display.
Applications of MPCB Digital Display Board
We serve as leading MPCB Digital Display Board Dealers in India; it is applicable in different sites which are given below.
- Automation Systems in Industry: MPCB Digital Display Board Suppliers in India is Applied in the control and monitoring of motors in automated production plants, conveyors and robotic systems.
- Motor Control Centers (MCCs): CCPs are necessary in MCC panels to offer protection and status reporting of numerous motors in large-scale industrial systems.
- Pumping Stations: MPCB Digital Display Board suppliers in India is Maintains a safe state of water, sewage, and irrigation pumping by showing real-time load and faults information.
- HVAC Systems: Applied in heating, ventilation and air-conditioning equipment to guard and regulate the motor in the blowers and compressors.
- Textile and Manufacturing Industries: Monitors health of machine motors and avoids sudden breakdowns in high speed production facilities.
Why choose us?
- Expert Engineering Team: A team of qualified electrical and automation engineers with many years of experience in the industry develop and designs our products.
- High-Quality Components: We also incorporate the best grade materials and other parts to make sure that we are durable, safe, and will perform in the same manner in industrial use.
- High-End Technology adoption: The digital display boards that we manufacture in our MPCB Digital Display Boards are constructed using the most recent digital monitoring and protection devices to ensure the smooth and efficient functioning of the boards.
We are leading MPCB Digital Display Board manufacturers, suppliers and Dealers in India. The capability of showing real-time motor data, fault detection on-the-fly, and enhancing the overall effectiveness of its operation makes it an important resource to any industry that uses systems that are motor-driven. MPCB Digital Display Board is a much needed innovation in contemporary electrical and automation systems as one solution is the protection, monitoring, and control.
FAQ
The digital display board MPCB is a smart monitoring and protection board coupled with Motor Protection Circuit Breaker. It gives live indication of such motor parameters as voltage, current, load state and safeguards against overloading, short circuiting and phase faults on the motor.
It constantly measures the electrical parameters of the motor and shows them on a digital screen. In case of faults like overloading or short circuiting, it activates the MPCB to disconnect the motor to avoid any damage and safeguard.
The main characteristics are a real-time data presentation, protection against overload and short circuit, the use of LED/LCD indicators, fault notifications, small size, and simple installation.
